Shenzhen Zento Traffic Equipment Co., Ltd. always keeps well informed about the technical development and new product R&D, which guarantees we can develop new products on a regular basis. At Shenzhen Zento Traffic Equipment Co., Ltd.,customer satisfaction and professional service as well as competitive prices are very important to us, a happy customer is what we strive to achieve. Shenzhen Zento Traffic Equipment Co., Ltd. will keep pace with the tide and focus on improving technologies, thereby creating and manufacturing products that better suit the needs of customers. We aim to lead the market trends one day.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Product Name:Hydraulic road bollardsApplication:Security Access Control Management
Material:304 Stainless SteelWarranty:2 Years
Normal work life:over 5 yearsRaising/lowering speed:3-6s(adjustable)

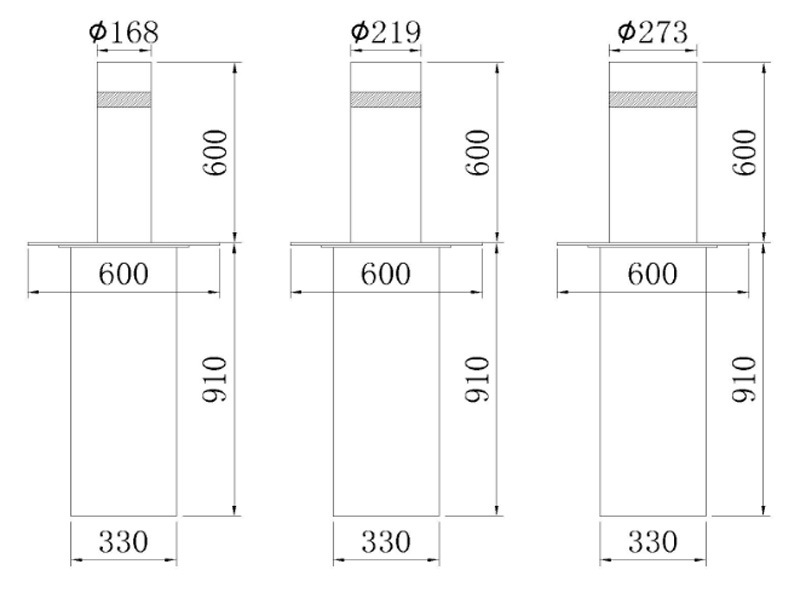

Diameter:275/220mmraised height:600-800mm(optional)
system control:hydraulic and electric controlLamp belt:LED lamp(Acrylic light circle)

Products Description

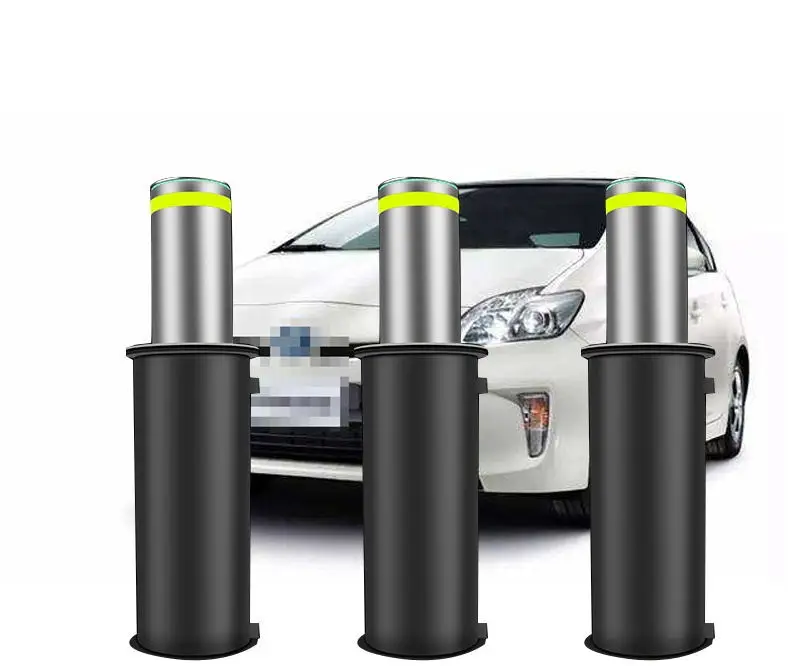

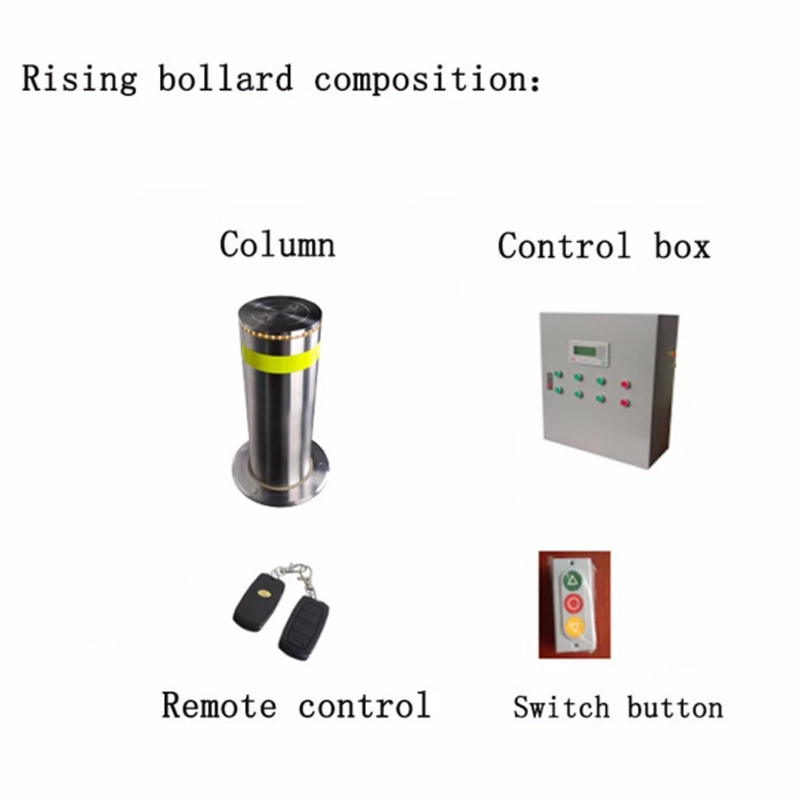

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
Color
Silver
Raising/lowering speed
3-6s(adjustable)
Diameter
275/220mm
raised height
600-800mm(optional)
Material
304 stainless steel
Control mode
remote control(<50m)
system control
hydraulic and electric control
Working temperature
-30℃~+75℃
Embedded cylinder depth
1100mm
Lamp belt
LED lamp(Acrylic light circle)
Power Supply
220V/380V
thickness
6mm
weight
100-155kg
anti-collision levels
K6
service life
3 million times
Drainage mode
natural drainage+External drainage system

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.

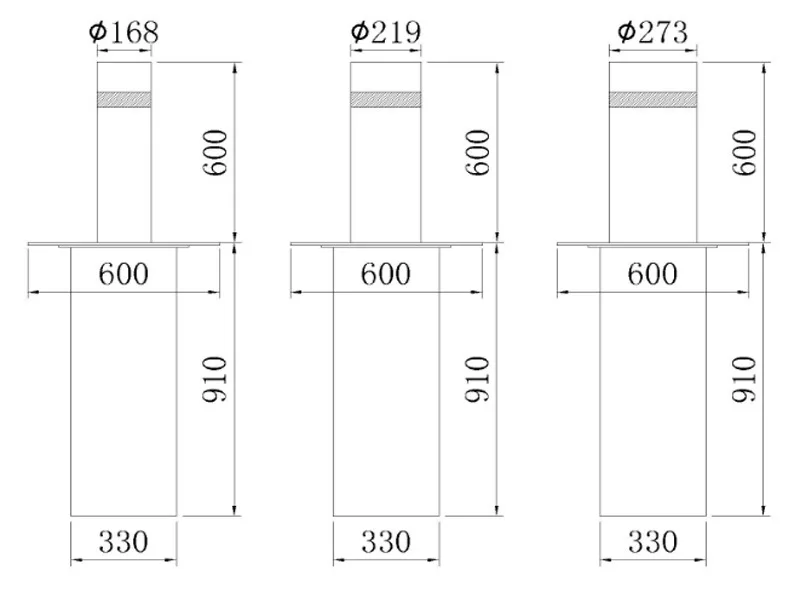

13. Anti-corrosion performance level: 9.Technical Parameters

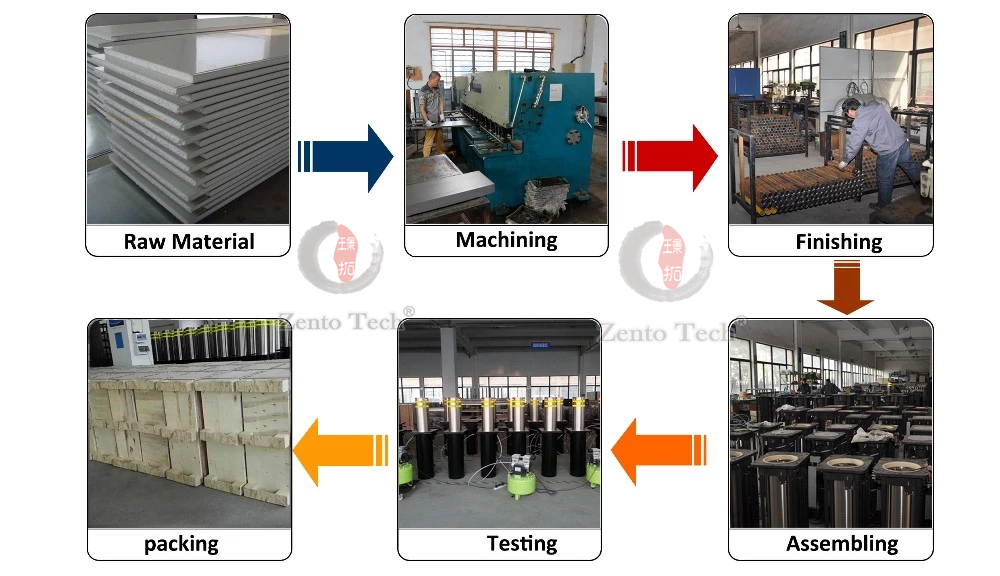

Product Processing

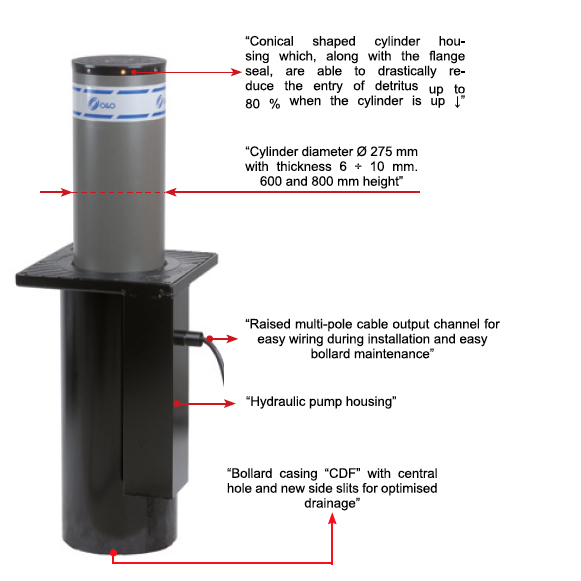

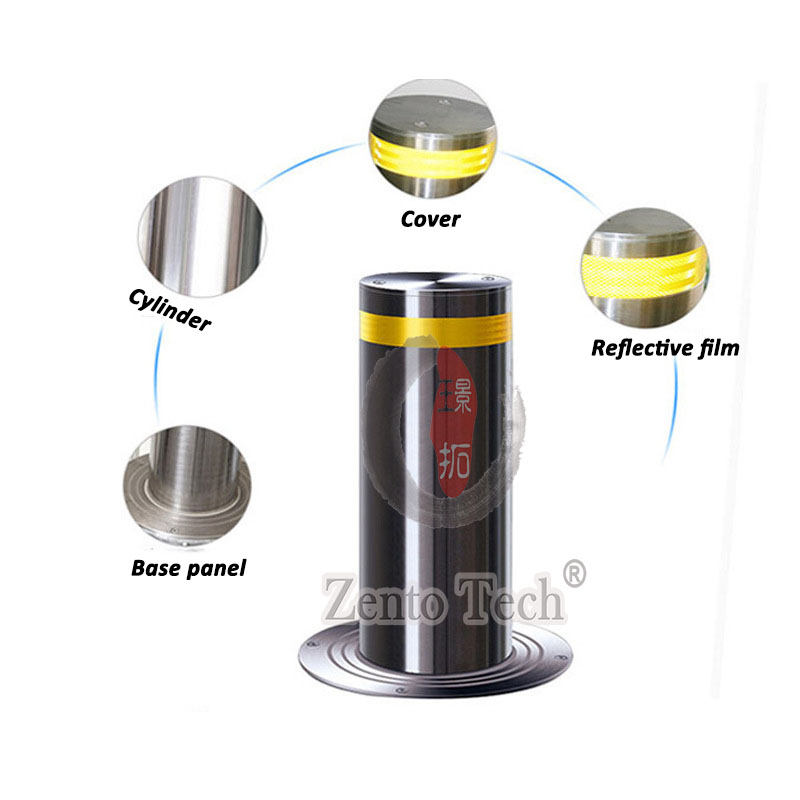

Product detaile
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.

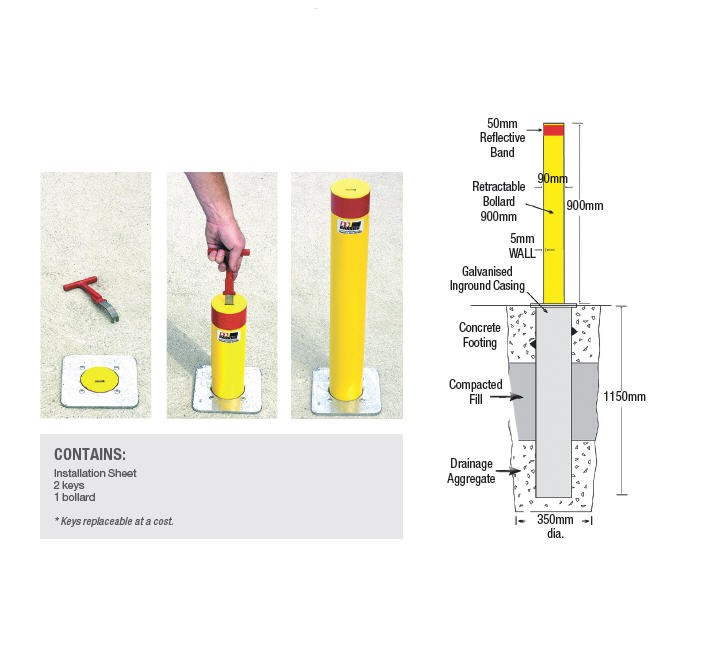

Installation steps

1. Cut the ground surface and excavate,the foundation base need around 800mm and 1130mm.
2. Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
3. Embed the bollard,make sure the head of the bottom is at the same level with the horizontal ground.
4. Install the wiring tube and drainage pipe.Make sure each wire should be secured by waterproof tape to avoid water vapor permeated into the wire.
5. Power on to test. Make sure the bollards can work well.Then cover the head of the bollard to avoid the concrete dirty it.All the drainage pipe hole need to be covered by structural adhesive.
6. Pour the concrete into the foundation base.Be careful to avoid the movement of bollard.
7. Tidy up the bollard head and ground surface, complete installation
containers and bottles in all shapes.

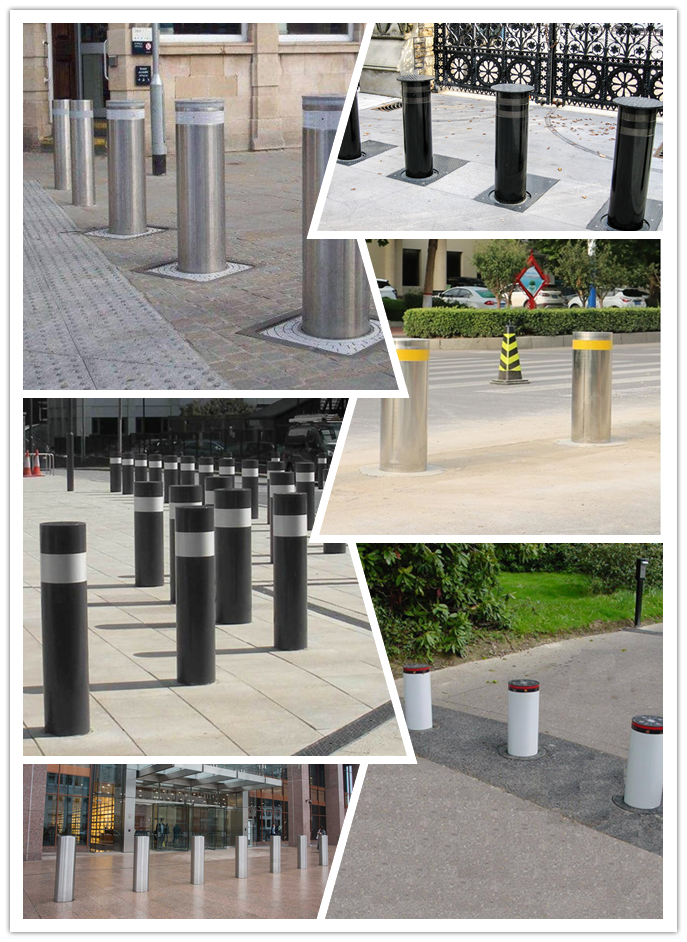

Project show

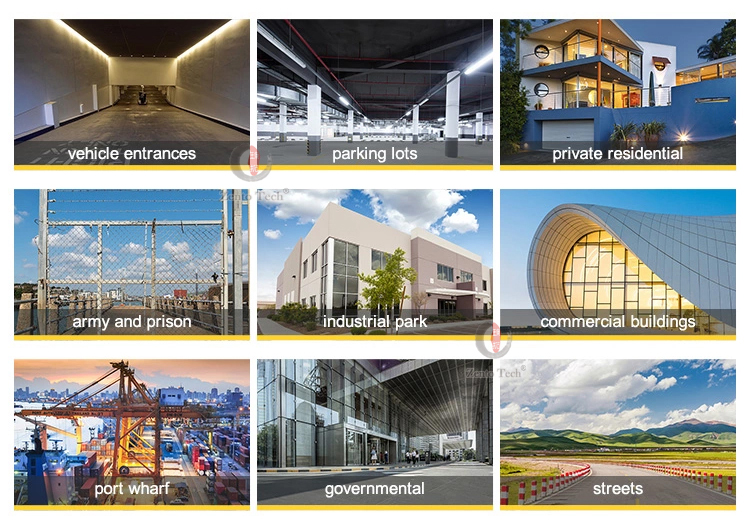

Application:
Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.

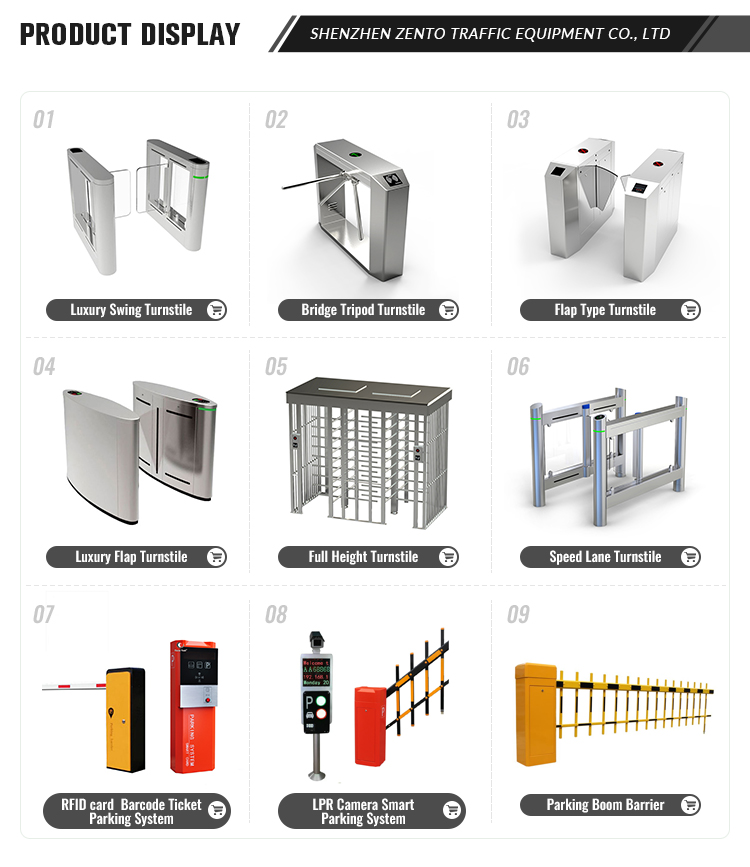

Recommend Products
Certifications
Company Profile
Delivery & Packing
FAQ
1.What is the strength of your company in this industry? We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand ZENTO is highly recognized in Southeast Asia.
2. What is your pricing strategy? For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control? IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design? That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service? Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery? Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment. Customized products: 50% deposit, 50% balance payment before shipment. Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment. T/T, PayPal, Credit guarantee order
